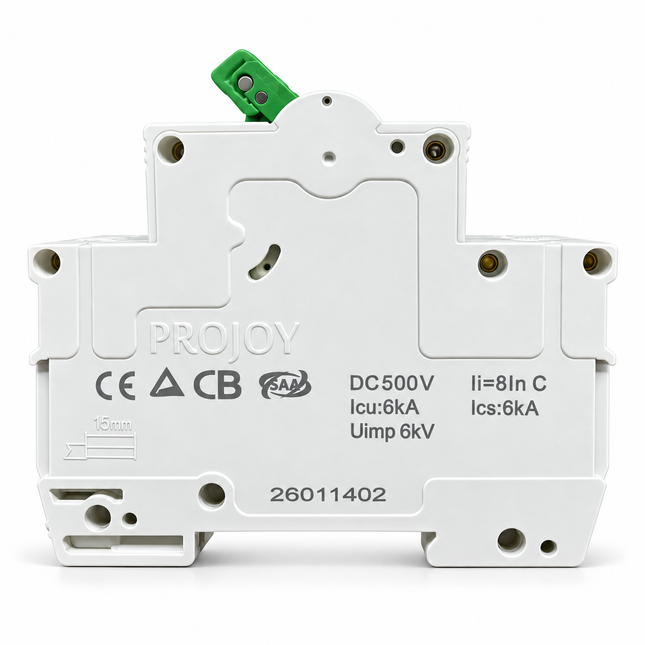

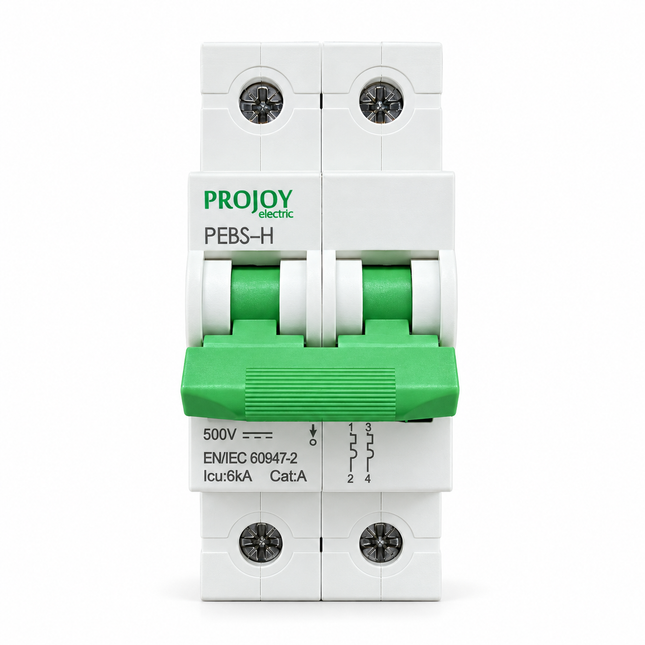

PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 500 V DC
Frame Current: 63A
Rated Current In: 25A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 36mm x H 87.5mm
Weight: 0.24kg
PROJOY DC Miniature Circuit Breaker PEBS-L-125 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 160 V DC
Frame Current: 125A
Rated Current In: 125A
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
Dimension: W 54mm x H 76.5mm
Weight: 0.34kg
PROJOY DC Miniature Circuit Breaker PEBS-L-125 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 160 V DC
Frame Current: 63A
Rated Current In: 63A
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
Dimension: W 36mm x H 73mm
Weight: 0.24kg
PROJOY DC Miniature Circuit Breaker PEBS-L-125 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 160 V DC
Frame Current: 63A
Rated Current In: 32A
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
Dimension: W 36mm x H 73mm
Weight: 0.24kg
PROJOY DC FUSE 1000V DC 16A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
TECHNICAL PARAMETER
Rated working voltage Ue: DC 1000V
Rated working current In: 16A
Breaking capacity: 20kA
Degree of Protection: IP20
Introducing the Boat Fuse Block, a marine fuse panel with an LED warning indicator and a damp-proof cover. This fuse box holder is designed for cars, marine vehicles, RVs, and trucks, supporting DC 12-24V systems and including fuses for your convenience.
Key Features:
Quick Fix: The red LED warning light activates immediately when a fuse blows, allowing you to quickly identify and replace the faulty fuse.
Clean Wiring: This fuse block and ground bus kit offers 12 dedicated fuses and 12 ground locations, keeping your wiring organized and easily accessible.
Safe Material: Made from environmentally-friendly PBT material, this fuse block is strong, insulated, heat-resistant, and flame-resistant, ensuring durability and safety.
Universal Protection: With a capacity of 100 Amps (30 Amps per fuse) and a ground bus bar, this fuse block can handle various applications, from overland lighting setups to power windows.
Free Blade Fuses: The package includes a variety of fuses: 6 x 20A, 6 x 15A, 6 x 10A, and 6 x 5A, along with labels and screws for easy installation.
Specifications:
Please refer to the included picture for detailed specifications.
Package Includes:
1 x 12 Circuit Fuse Block with Negative Bus
6 x 5A orange fuse pieces
6 x 10A red fuse pieces
6 x 15A blue fuse pieces
6 x 20A yellow fuse pieces
4 x screws
1 x label stickers set
PROJOY DC Circuit Breaker PEMC-250 500V 160A 2P with Waterproof Enclosure***SAA NZ Certificated***The PROJOY PEMC-250 DC Circuit Breaker is a high-performance protection device designed for solar power systems, electric vehicles, and other DC applications. Engineered for safety, reliability, and durability, it ensures your electrical system is protected from overloads and short circuits.Key Features
Rated Voltage: 500V DC
Rated Current: 160A
Poles: 2P (Double Pole)
Waterproof Enclosure: IP65-rated, suitable for indoor and outdoor use
Durable Construction: Robust design for long-term reliability
Easy Installation: Compact and user-friendly for quick setup
Applications: Solar PV systems, EV charging, renewable energy storage, and other DC circuits
Protect your system with the PROJOY PEMC-250, combining high safety standards, waterproof design, and dependable performance. Ideal for both professional installations and DIY projects.
PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 3P
Rated Working Voltage Ue: 750 V DC
Frame Current: 63A
Rated Current In: 25A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 54mm x H 87.5mm
Weight: 0.36kg
PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 1P
Rated Working Voltage Ue: 250 V DC
Frame Current: 63A
Rated Current In: 25A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 18mm x H 87.5mm
Weight: 0.12kg
PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 3P
Rated Working Voltage Ue: 750 V DC
Frame Current: 63A
Rated Current In: 16A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 54mm x H 87.5mm
Weight: 0.36kg
PROJOY DC Miniature Circuit Breaker PEBS-L-125 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 1P
Rated Working Voltage Ue: 80 V DC
Frame Current: 125A
Rated Current In: 125A
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
Dimension: W 27mm x H 76.5mm
Weight: 0.17kg
PROJOY DC Miniature Circuit Breaker PEBS-L-125 Series
***SAA NZ Certificated***
HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring
Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 160 V DC
Frame Current: 63A
Rated Current In: 25A
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 10kA
Rated Service Short-Circuit Interrupting Capacity Ics: 7.5kA
Dimension: W 36mm x H 73mm
Weight: 0.24kg
PROJOY DC FUSE PEDF-1000 1000V DC 30A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
Technical data
Model: PEDF-1000
Pole: 1P
Standard: IEC60269-1/IEC60269-6
Rated working voltage Ue VDC: 1000V DC
Rated current In A: 30A
Breaking capacity kA: 20kA
Protection degree: IP20
Wire mm2: 1-25mm2
Ambient temperature: -40°C ～ 90°C
Elevation: ≤2000m
Relative humidity: +20°C，≤90%；+30°C，≤80%；+40°C，≤70%
Installation environment: Avoid obvious shock and vibration
Installation class: III
Mounting channel: TH35-7.5/DIN35 rail

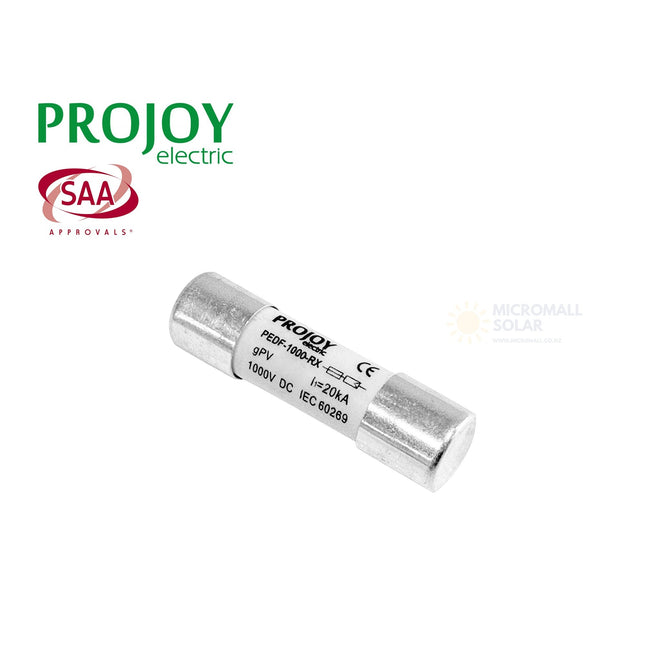

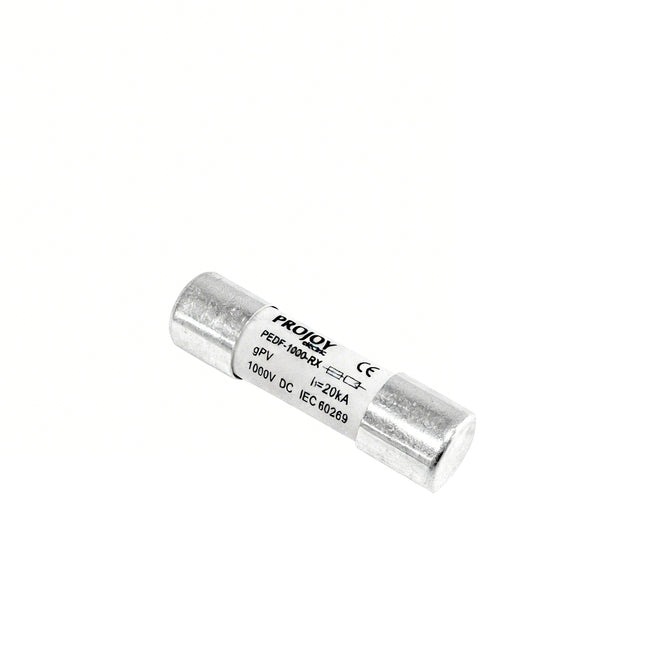

PROJOY DC FUSE 1000V DC 10A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
TECHNICAL PARAMETER
Rated working voltage Ue: DC 1000V
Rated working current In: 10A
Breaking capacity: 20kA
Degree of Protection: IP20
PROJOY DC FUSE 1000V DC 20A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
TECHNICAL PARAMETER
Rated working voltage Ue: DC 1000V
Rated working current In: 20A
Breaking capacity: 20kA
Degree of Protection: IP20
PROJOY DC FUSE 1000V DC 25A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
TECHNICAL PARAMETER
Rated working voltage Ue: DC 1000V
Rated working current In: 25A
Breaking capacity: 20kA
Degree of Protection: IP20
PROJOY DC FUSE 1000V DC 30A
***SAA NZ Certificated***
Projoy PEDF series DC Fuse is suitable for short-circuit overload protection in distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short-circuit capacity not exceeding 20kA. Mainly used in energy storage systems, solar photovoltaic combiner boxes.
Good sealing
High flame retardant performance
Made of sterling silver core
Strong breaking ability
Replaceable fuse
Indicator base is optional
TECHNICAL PARAMETER
Rated working voltage Ue: DC 1000V
Rated working current In: 30A
Breaking capacity: 20kA
Degree of Protection: IP20
PROJOY PEDSC120R Series DC Isolator
***SAA NZ Certificated***
Projoy PEDSC Series DC Isolator DC insulation voltage 1500V. Parallel wiring, aperture is bigger, easier to install and stronger connection.
Various Installation methods
Various connection methods
High Electrical life
Energy storage spring, quick switch
Modular design
IP66 Protection class
Strong flame retardant performance
-40°C ~ +70°C full load operation
TECHNICAL PARAMETER
Model number: PEDSC120R-EL32R-4S 2MC4
Rated Insulation Voltage Ui： DC1500V
Rated thermal current Ith： 32A
Poles： 2P
Rated withstand impulse voltage Uimp： DC 8000V
Rated short-time withstand current Icw： 1000A/1s
Mechanical life： 10000 times
Electrical life： 1000 times
Installation method： Panel Mounting, Dinrail Board, Enclosure
PROJOY PESP-600 600V DC Surge Protector for PV
***SAA NZ Certificated***
Projoy PESP series is a special surge protector for the DC side of photovoltaic system. It is widely used in photovoltaic power generation systems, such as various junction box, inverters, DC cabinets, DC pannels and other important and vulnerable DC equipment, to protect the equipment from the impact of transient surge voltage,limiting transient overvoltage and discharging surge current caused by lightning or switching operation.
Imported chips with reliable quality
Nanoscale response
Plug-in structure
Status indicator
Standard installation of 35mm rail
TECHNICAL PARAMETER
SPD Type: T2
Maximum continuous working voltage Ucpv: DC 600V/DC
Maximum discharge current Imax: 40kA
Nominal discharge current In: 20kA
Poles： 2P
Degree of Protection: IP20
PROJOY PESP-1000 1000V DC Surge Protector for PV
***SAA NZ Certificated***
Projoy PESP series is a special surge protector for the DC side of photovoltaic system. It is widely used in photovoltaic power generation systems, such as various junction box, inverters, DC cabinets, DC pannels and other important and vulnerable DC equipment, to protect the equipment from the impact of transient surge voltage,limiting transient overvoltage and discharging surge current caused by lightning or switching operation.
Imported chips with reliable quality
Nanoscale response
Plug-in structure
Status indicator
Standard installation of 35mm rail
TECHNICAL PARAMETER
SPD Type: T2
Maximum continuous working voltage Ucpv: DC 1000V/DC
Maximum discharge current Imax: 40kA
Nominal discharge current In: 20kA
Poles: 3P
Degree of Protection: IP20
PROJOY PESP-1500 1500V DC Surge Protector for PV
***SAA NZ Certificated***
Projoy PESP series is a special surge protector for the DC side of photovoltaic system. It is widely used in photovoltaic power generation systems, such as various junction box, inverters, DC cabinets, DC pannels and other important and vulnerable DC equipment, to protect the equipment from the impact of transient surge voltage,limiting transient overvoltage and discharging surge current caused by lightning or switching operation.
Imported chips with reliable quality
Nanoscale response
Plug-in structure
Status indicator
Standard installation of 35mm rail
TECHNICAL PARAMETER
SPD Type: T2
Maximum continuous working voltage Ucpv: DC 1500V/DC
Maximum discharge current Imax: 40kA
Nominal discharge current In: 20kA
Poles: 3P
Degree of Protection: IP20
PROJOY PER-C20 275V AC Surge Protector
***SAA NZ Certificated***
PER-C20 AC surge protector, suitable for AC 50/60 HZ, rated voltage 230/440V three-phase power distribution system, satisfy the SPD, I class and Ⅱ class test. The peak shock current of the stage I protector is 5kA(10/350μs), and the charge is 25As,Ⅱ protector maximum discharge current level can up to 100 kA. It can suppress direct strikes, inductive strikes or other instantaneous overvoltages, discharge inrush energy, thus protects system circuits and load equipment. It has the advantages of I or II protection, large discharge capacity, low residual pressure, no leakage current, integrated module structure, easy installation, high safety factor, long service life and so on.
PER-C20 AC surge protector cooperates with each other to realize the layered protection system, so that the low-voltage distribution system can be more widely and effectively protected.
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating, the fail-safe detach device can automatically detach from the power grid and give an indication signal. When the protector is normal, the display window will show green, and after failure, the display window will show red.
Technical data
AC SPD IEC 61643-11、EN 61643-11
Wave Shape: T2: 8/20μs
Model: PER-C20
Usage Category: T2
Pole: 2P
Nominal Discharge Current In: 20kA
Max. Discharge Current Imax: 40kA
Max. Continuous Operating Voltage Uc: 275V
Protection level Up: 1.5kV
PROJOY PER-C20 440V AC Surge Protector
***SAA NZ Certificated***
PER-C20 AC surge protector, suitable for AC 50/60 HZ, rated voltage 230/440V three-phase power distribution system, satisfy the SPD, I class and Ⅱ class test. The peak shock current of the stage I protector is 5kA(10/350μs), and the charge is 25As,Ⅱ protector maximum discharge current level can up to 100 kA. It can suppress direct strikes, inductive strikes or other instantaneous overvoltages, discharge inrush energy, thus protects system circuits and load equipment. It has the advantages of I or II protection, large discharge capacity, low residual pressure, no leakage current, integrated module structure, easy installation, high safety factor, long service life and so on.
PER-C20 AC surge protector cooperates with each other to realize the layered protection system, so that the low-voltage distribution system can be more widely and effectively protected.
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating, the fail-safe detach device can automatically detach from the power grid and give an indication signal. When the protector is normal, the display window will show green, and after failure, the display window will show red.
Technical data
AC SPD IEC 61643-11、EN 61643-11
Wave Shape: T2: 8/20μs
Model: PER-C20
Usage Category: T2
Pole: 4P
Nominal Discharge Current In: 20kA
Max. Discharge Current Imax: 40kA
Max. Continuous Operating Voltage Uc: 440V
Protection level Up: 1.8kV
