EPEVER EP Solar Tracer MPPT Remote MT-52 for BN and A Series MT52 Remote Meter
The MT52 remote meter, compatible with controllers featuring RS485 communication, enables real-time monitoring of the controller's operation and parameter programming. Key features include easy installation and operation, real-time display of fault alarms, local reading of parameters, direct power supply from the controller, and an RJ45 communication port.
Features
Easy to install and operate.
Locally reading of real-time parameters.
Equipped with an RJ45 communication port.
Real-time display of fault alarm.
Powered by the controller directly.
Electrical Parameter
Self-consumption: Backlight ON
EPEVER WiFi Adapter Accessories for MPPT solar charge controller, Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Parameter :
Model: EPEVER WiFi 2.4G RJ45 D (APP: Solar Guardian)
Working voltage: 5V± 0.5V(Powered by RS485 com. port)
Power consumption Peak emission: 150mA; Idle: 310uA
Enclosure: IP30
Communication method: RS485 Communication parameters: 115200Bps, 8N1
Interface standard: EPEVER communication standard V1-1.0
Work frequency: 2.4 ~ 2.4835GHz
Work temperature range: -40℃~ 85℃
Dimension: 63mm x 19mm x 10mm
Net weight: 7.7g
Package List:
1 X EPEVER WiFi Adapter
1 X Manual
Introducing the EPEVER XTRA4415N-XDS2 40A MPPT Solar Charge Controller, a high-performance device designed for 12/24/36/48V systems, capable of handling up to 150V.
Key Features:
Utilizes advanced MPPT technology with up to 99.5% tracking efficiency.
Achieves DC/DC transfer efficiency up to 98%, with full load efficiency at 97.4%.
Offers a broad MPP operating voltage range.
Features low temperature protection and a lithium battery charging self-activation function.
Includes power and current limitation beyond rated specifications.
Equipped with real-time energy monitoring.
Supports multiple load operation modes.
Provides comprehensive electronic protection for safety.
Compatible with both lead acid and lithium-ion batteries.
Over temperature protection with power reduction in high heat.
Optional LCD display units (XDB1/XDS1/XDS2) for enhanced usability.
Built with high-quality, durable components from ST or IR.
Isolated RS485 with protected 5V/200mA output, using standard Modbus protocol.
Remote monitoring and settings adjustment via APP or PC software.
Dust and waterproof with an IP32 rating.
CE certified (LVD IEC62109, EMC EN3/1-6-61000).
Specifications:
Nominal voltage: Auto 12/24/36/48VDC
Charge/discharge current: 40A
Battery voltage range: 8-68V
Max PV open circuit voltage: 150V
Max PV input power: 520W (12V), 1040W (24V), 1560W (36V), 2080W (48V)
Conversion efficiency: 98.5%; Load efficiency: 97.2%
Dimensions: 255x189x83.2mm; Weight: 2.47kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA4210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 40A
Rated Discharging Current: 40A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
520W/12V
1040W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.50%
Dimension(LxWxH): 255x185x67.8mm
Net Weight: 1.72kg
Introducing the brand-new EPEVER XTRA N Series Solar Charge Controller, a state-of-the-art product designed for optimal solar system performance and durability.
The XTRA N Series Controller boasts a digitally controlled self-adaptive three-stage charging mode, extending battery lifespan and enhancing system performance. With comprehensive electronic protection, it safeguards against overcharge, overdischarge, and PV & battery reverse polarity, making your solar system more reliable and durable. This versatile controller is ideal for various applications including RVs, household systems, and field monitoring.
Product Details:
Model: Tracer 4210AN MPPT Charge Controller
12V / 24V DC Auto
Rated Charge Current: 40A
Max Input Power: 12V @ 520W | 24V @ 1040W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negative Ground Controller
Charging Power and Current Limitation Function
User Programmable for Battery Types, Load Control, etc.
Key Features:
CE Certified (LVD EN/IEC62109, EMC EN61000-6-1/3)
Operates efficiently across a wide range of temperatures, with 100% charging and discharging
Optional LCD display units available: XDB1/XDS1/XDS2
Crafted with high-quality, low-failure-rate components from ST or IR to ensure longevity
Advanced MPPT technology with ultra-fast tracking speed, delivering up to 99.5% tracking efficiency
High transfer efficiency of 98.3% DC/DC, and full load efficiency of up to 97.3%
Weight: 2.3kg
Package Includes:
1 x Tracer 4210AN MPPT Charge Controller
Warranty:
Covered by a 12-month warranty for your peace of mind.
Invest in the EPEVER XTRA N Series Controller for a dependable and enduring solar system experience!
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.40%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
Introducing the XTRA N Series Solar Charge Controller:
Brand new epever solar charge controller
Self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection against overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability
Suitable for various applications such as RVs, household systems, field monitoring, and more
12 months warranty included
Specifications (Tracer 2210AN MPPT Charge Controller):
Voltage: 12V / 24V DC (Auto)
Max Input Power: 12V @ 260W | 24V @ 520W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C temperature)
Battery Types: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negatived Ground Controller
Charging Power and Current Limitation Function
User programmable for battery types, load control, etc.
Key Features:
CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
100% charging and discharging in working environment temperature range
Optional LCD display units available (XDB1/XDS1/XDS2)
High-quality components ensure reliability with low failure rate (ST or IR)
Advanced MPPT technology with ultra-fast tracking speed (efficiency up to 99.5%)
Maximum DC/DC transfer efficiency as high as 98.3%, full load efficiency up to 97.3%
Accurate recognition and tracking of multi-peaks maximum power point
Lightweight design (0.96kg) and compact dimensions (21715856.5mm)
Included in the package:
1 x Tracer 2210AN MPPT Charge Controller
Upgrade your solar charging system with the XTRA N Series Solar Charge Controller for enhanced performance and reliability.
Tracer series AN controller adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm make the solar module operate at ideal voltage which the solar modules can produce the maximum available power. Compared to conventional PWM controller, MPPT technology increase charge efficiency up to 25% and decrease the power of solar array needed. Tracer has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank.
come with 5 years warranty.
New A-series Tracer has all the features of earlier Tracer models, and has a built in display. Fully USER definable settings using optional MT-50 ($49) or PC cable ($15) suitable for a wide range of battery types, and load timer, day/night, or disconnect settings - this makes it compatible with most LITHIUM BATTERIES. The MT-50 display is not required for selecting any of the three standard battery settings. 3 Stage charging: Bulk, Boost and Float, plus Equalize function. Settings for Flooded, Gel, Sealed batteries or user defined settings, contain algorithms to suit all lead acid battery types. Temperature Probe $25；eBOX WIFI $35
Suitable for use on 12 and 24 VDC systems
MPPT Technology is around 98% efficient, which is much better than the old PWM type charging that is around 75% efficient
MPPT technology takes the difference in voltage between your batteries and your solar panels and converts it into CHARGING AMPS for up to 45% + more output from your panels!
Can take any Solar Input that is higher than your Battery Voltage and charge your batteries!
Example: You can have a 24VDC solar panel and a 12VDC battery system, and the MPPT controller will turn the extra voltage into Amps!
Peak conversion efficiency of 97 %
High Tracking efficiency of 99%
MODEL: TRACER 3210AN
12VDC / 24VDC Auto
Rated Battery Current 30A
Max. Solar Input Voltage 100VDC
Max. PV input power:12V/ 390W , 24V /780W
Dimension 228x 164 x 55 / mm
Weight 1.2kg
SRNE MD1250N05 MD Series DC-DC Charger with MPPT Dual-Battery Controller
Smart Charging. Anytime, Anywhere.
Designed for off-grid and mobile applications such as RVs, caravans, boats, and 4WD vehicles.
Versatile Charging for Dual-Battery Systems
Supports charging from both solar panels (PV) and vehicle alternator
Charges both starter battery and leisure (auxiliary) battery simultaneously
Compatible with 12V and 24V alternator systems
For off-grid application
Can be connected to both PV and an alternator
Can charge both the leisure battery and the starter battery
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
360 degrees of security from hardware to software
All-in-One
4 charging modes，be your reliable power steward
Helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panels 2 in series/2 in parallel connection
Intelligent
Supports RV-C communication
MODEL: MD1250N05
PV INPUT
Max.Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max.PV Input Current: 45A
Max.PV Input Power: 700W
LEISURE BATTERY
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-16Vdc
Max.MPPT Charging Current: 50A
Max.Alternator Charging Current: 60A
STARTER BATTERY / ALTERNATOR
Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
Max.MPPT Charging Voltage: 13.8V
Max.MPPT Charging Current: ≤15A
Max.Alternator Input Voltage
Conventional Alternator: 13.2-16Vdc / 26.4-32Vdc
Euro 6 Standard Alternator: 12-16Vdc / 24-32Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
External Modules: Bluetooth (with APP)
GENERAL
Weight: 2.15kg
Dimension: 221x175.8x92.4mm
Protection Degree: IP32
Operating Temperature Range: -35°C - 65°C
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is engineered for off-grid solar systems, delivering high efficiency, advanced protection, and smart, user-friendly operation. Now with Bluetooth functionality for seamless mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design, saving space and reducing noise.Shiner2410B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 60VDC
MPPT Voltage Range: Battery voltage +2V to 45VDC
Max PV Input Power: 130W (12V), 260W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 10A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 155 × 99 × 41.7 mm
Weight: 350g
Ideal for off-grid solar systems, caravans, and remote applications, the Shiner Series provides stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

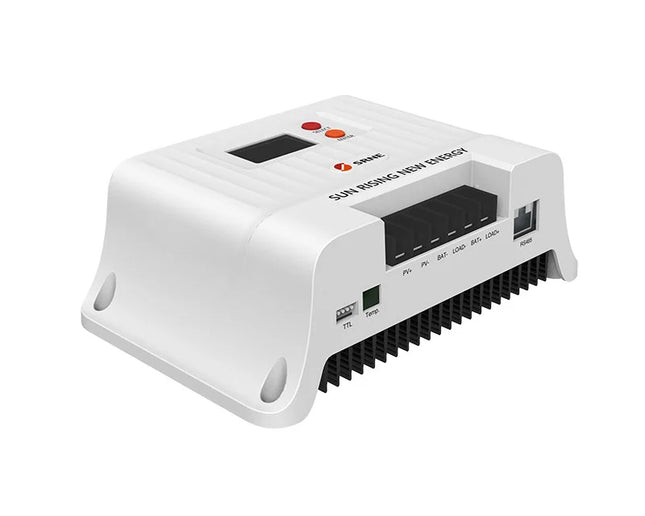

Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, delivering high efficiency, advanced protection, and user-friendly operation. Now featuring Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485, CAN communication, plus Bluetooth support with mobile app.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design, saving space and reducing noise.Shiner2420B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 60VDC
MPPT Voltage Range: Battery voltage +2V to 45VDC
Max PV Input Power: 260W (12V) / 520W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 20A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 181 × 118 × 61.7 mm
Weight: 650g
Perfect for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

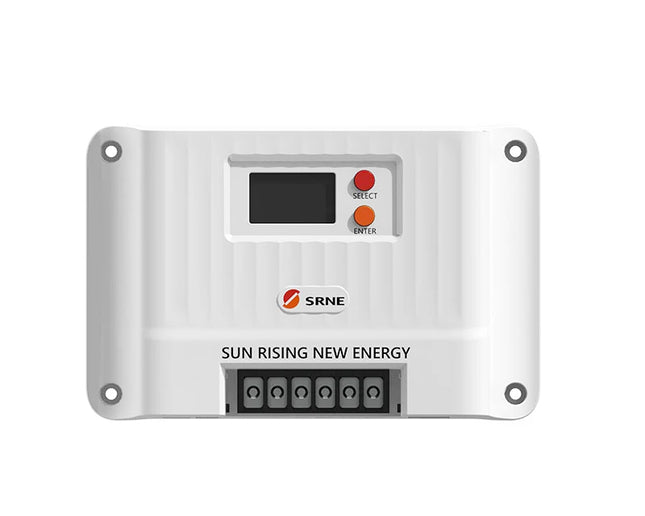

Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485, CAN communication, and Bluetooth support with mobile app for real-time monitoring.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2430B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 400W (12V) / 800W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 30A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 187 × 133 × 72 mm
Weight: 1.2 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

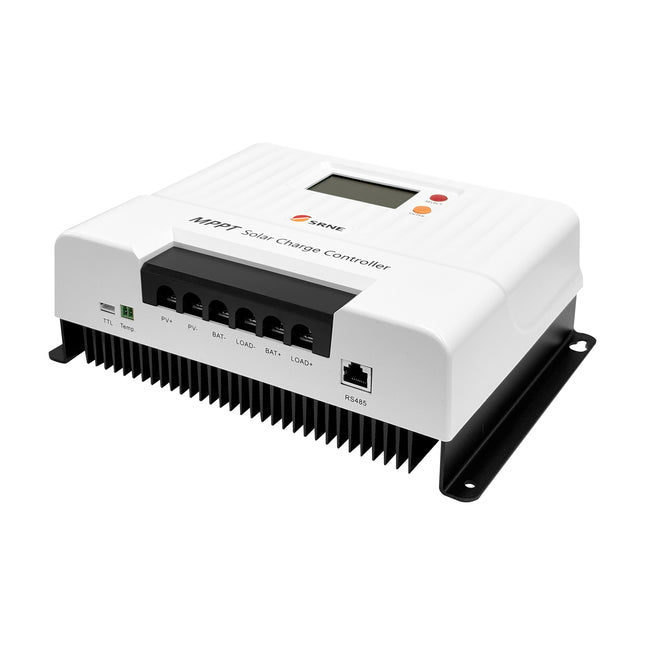

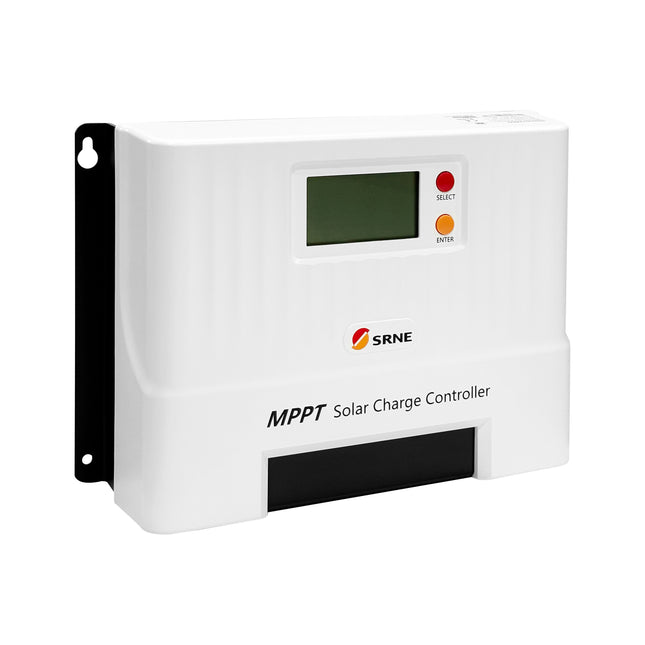

Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now featuring Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2460B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 800W (12V) / 1600W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 60A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 261 × 186 × 82 mm
Weight: 2.4 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

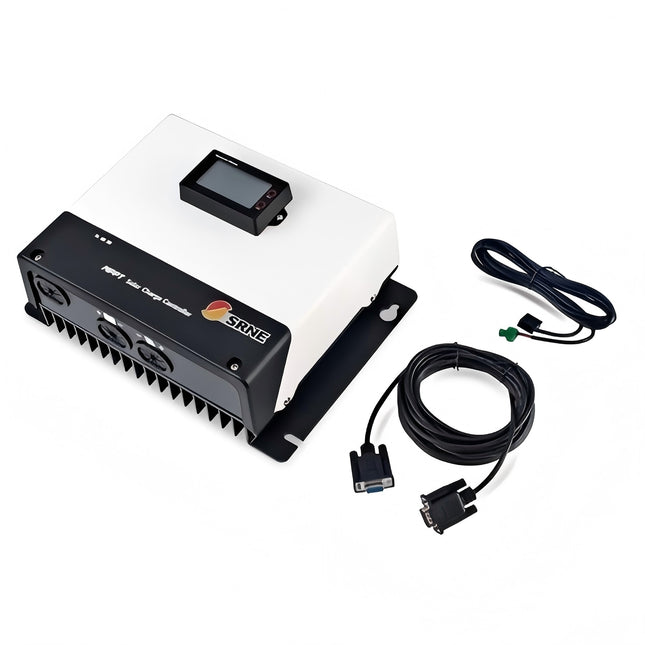

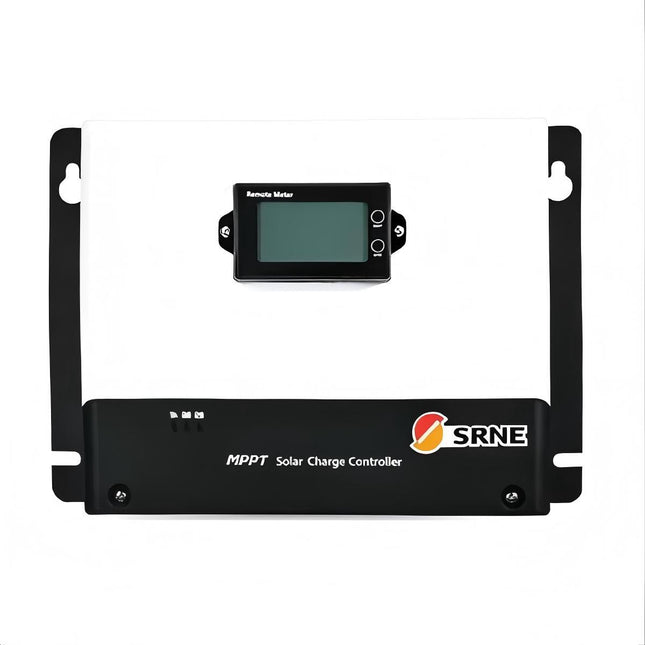

SRNE MC4860N15 MPPT Controller 60A MPPT Solar Charge Controller 12V 24V 36V 48VThe controller adopts the industry-leading PowerCatcher maximum power point tracking (MPPT) technology, enabling maximum energy harvesting from solar panels. It can quickly and accurately track the maximum power point of the solar cells under any environmental conditions, capture the maximum available energy from the solar panels in real time, and significantly improve the energy utilization efficiency of the solar system.FeaturesHigh Efficiency: with 99.9% tracking efficiency and 98% conversion efficiency, 30% higher performance than PWM controllers.Full-range circuit protection
Smart Temperature Control: Built-in temperature detection, fanless cooling, and automatic temperature compensation.
Versatile Connectivity: Supports Modbus protocol and built-in Bluetooth module.
Wide Compatibility: Compatible with lead-acid and lithium batteries, customizable charging parameters.
Recognition 12V/24V voltage automatically.Intelligent Operation: Limited charge mode to prevent overcurrent.Supports 1-year historical data storage.SpecificationsModel: MC4860N15PV inputMaximum input voltage of solar energy(25℃): 150V
Voltage at Maximum Power Point: Battery voltage+2~120V
Charging current: 60A
Solar panel power(12V battery): 800W
Solar panel power(24V battery): 1600W
Solar panel power(48V battery): 3200W
Operating temperature range: -35℃~60℃
Humidity: 95%, no condensation
Protection grade: IP32
Weight: 3.6kg
Product Dimensions: 266 × 194 × 119 mm
Boasts high-efficiency solar tracking and outstanding conversion performance, integrated with full-range circuit protection, smart temperature control, multi-mode connectivity, wide battery compatibility and intelligent operation – your top choice for solar charging management.
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, providing high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and control.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2440B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 520W (12V) / 1040W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 40A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 228 × 160 × 72 mm
Weight: 1.75 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

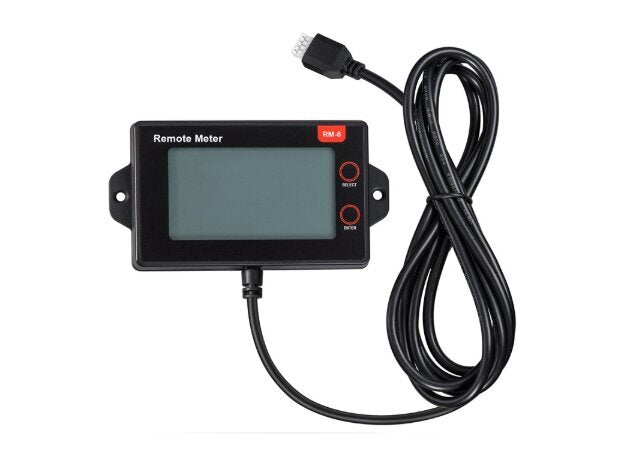

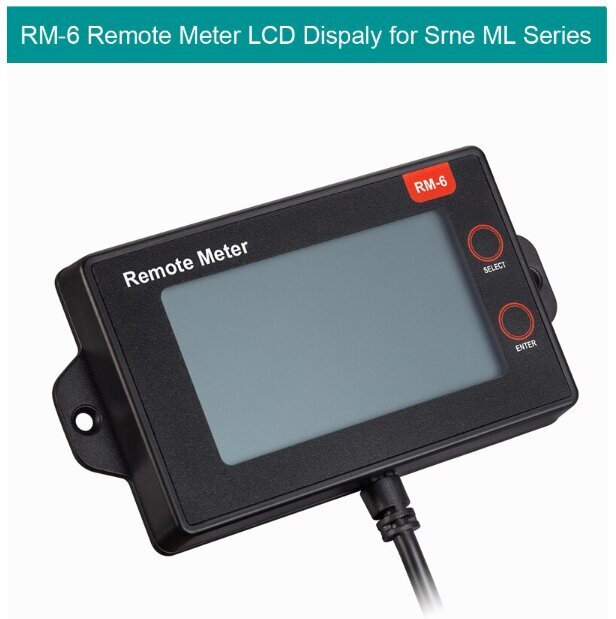

RM-6 Remote Meter LCD Display for SRNE MC Series MPPT Solar ControllersReal-Time Monitoring of System Data and Operating StatusThe RM-6 Remote Meter is a convenient external display designed for SRNE MC Series MPPT solar charge controllers. It allows users to remotely monitor key system information in real time, providing clear visibility of the solar system’s operating status without needing to access the controller directly.Equipped with a clear LCD screen, the RM-6 displays essential system data such as battery status, charging current, voltage, and system faults. This makes it easier to manage and maintain your solar power system efficiently.The remote meter connects directly to compatible SRNE controllers, enabling easy installation and reliable communication. It is ideal for off-grid solar systems, RVs, boats, cabins, and home solar setups where the charge controller may be installed in a less accessible location.Key FeaturesCompatible with SRNE MC Series MPPT solar charge controllersReal-time monitoring of system data and operating statusClear LCD display for easy readingDisplays important information including battery voltage, charging current, and system statusRemote monitoring capability for convenient system managementSimple plug-and-play installationSpecifications
Model: RM-6
Display Type: LCD Screen
Compatible Controllers: SRNE MC Series MPPT Solar Controllers
Origin: China
Package Includes1 × RM-6 Remote Meter LCD Display
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA3210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 30A
Rated Discharging Current: 30A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
390W/12V
780W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.60%
Dimension(LxWxH): 230x165x63mm
Net Weight: 1.30kg
Introducing the Epever MPPT Solar Charge Controller 30A XTRA3210N bundled with the MT50 Remote Meter – a top-tier combination for optimal solar charge management!
Product Features:
Model: XTRA3210N
Voltage: 12/24V
Current: 30A
Maximum PV Voltage: 100V
Max PV Input Power: 390W (12V), 780W (24V)
Key Features:
Modular MPPT solar charge controller for efficient energy management.
Common negative design and automatic module driver recognition for ease of use.
Compatible with both lead-acid and lithium batteries.
Offers multiple load control modes.
Extensive electronic protection to safeguard your equipment.
Features an LCD display and LED indicator for real-time monitoring.
Supports master or slave RS485 communication.
Equipped with a 2.2A USB output.
Original relay design for enhanced reliability.
Electronic Protections:
PV short circuit
PV overcurrent
PV reverse polarity
Battery overvoltage
Battery over-discharge
Battery overheating
Load short circuit
Load overload
Controller overheating
Display Feature:
The integrated display provides vital information, such as panel and battery voltages, current usage, and production rates, allowing you to monitor your system’s performance at a glance.
Warranty:
Enjoy peace of mind with a 12-month warranty included with your purchase!
Enhance your solar energy system with the Epever MPPT Solar Charge Controller XTRA3210N and MT50 Remote Meter combo – designed for performance, reliability, and protection!
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software
Model: XTRA3210N
Rated charge current: 30A
Rated charge power:
390W/12V
780W/24V
Max.PV Array Power:
580W/12V
1170W/24V
Max.PV open circuit voltage:
92V(25℃)
100V (minimum operating temperature)
5 years Warranty
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2206N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 60V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
Introducing the Epever Solar Charge Controller - XTRA2206N (20A):
Brand new Epever solar charge controller
XTRA N series controller featuring self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection for overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability in your solar system
Suitable for various applications including RV, household systems, field monitoring, and more
Comes with a 12-month warranty
Specifications:
Model: XTRA2206N G3
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8~32V
PV Maximum Open-circuit Voltage:
60V(At minimum operating environment temperature)
46V(At 25℃ environment temperature)
MPPT Voltage Range: (Battery voltage+2V)~36V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
RS485 Port: 5VDC/200mA(RJ45)
Dimension (L x W x H): 217×158×56.5mm
Mounting Size (L x W): 160×149mm
Net Weight: 0.97kg
Upgrade your solar system with the Epever XTRA2206N Solar Charge Controller for efficient and reliable power management.
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software
Model: XTRA1210N
Rated charge current: 10A
Rated charge power:
130W/12V
260W/24V
Normal system voltage: 12/24VDC Auto Work
Max. conversion efficiency: ≤98.60%
MPPT tracking efficiency: ≥99.50%
Dimensions(L*W*H)mm: 175*143*48
Gross weight: 0.57KG
5 years Warranty
This model is XDS2 version!
XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power p0int loss rate and loss time, quickly track the maximum power p0int(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.
Features：
- CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)
- 100% charging and discharging in working environment temperature range
- Optional LCD display units (XDB1/XDS1/XDS2)
- High quality and low failure rate components of ST or IR to ensure service life
- Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%
- Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
- Accurate recognizing and tracking of multi-peaks maximum power p0oint
- Wide MPP operating voltage range
- Support the lead-acid and lithium batteries, programmable temperature compensation
- Limit charging power & current overrated value
- Real-time energy statistics function
- Power reduction automatically over-temperature value
- Multiple load work modes
- Comprehensive electronic protection
- Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol
- Support monitoring and setting the parameters via APP or PC software
Model: XTRA1206N
Rated charge current: 10A
Rated charge power:
130W/12V
260W/24V
Normal system voltage: 12/24VDC Auto Work
Max. conversion efficiency: ≤98.60%
MPPT tracking efficiency: ≥99.50%
Dimensions(L*W*H)mm: 175*143*48
Gross weight: 0.57KG
5 years Warranty
This model is XDS2 version!
This is an updated series of Tracer A/AN Series controller, can be integrated with different display and interface modules to meet a variety of functional requirements. Can automatically identify and load the drivers of various modules.
Negative groud designed of this 30a modual mppt controller can be widely used for different applications, e.g., communication base stations, household systems, street lighting systems and field monitoring, RV solar system etc.
7 battery selection Sealed(AGM), Gel, Flooded, Lead-acid User, LiFePO4 Lithium, Li(NiCoMn)O2 Lithium, Lithium User(9~34V). Dual 5V DC USB output interface of this mppt controller can charge your electronic devices directly.
Real-Time energy statistic function, View/modify working parameters via APP or PC software via RS485 interface.(optional).
Specification
Model: TRIRON3210N
System voltage: 12/24VDC auto work
Rated charge current: 30A
Battery input voltage range:8-32V
Max. PV open circuit voltage:100Vat Min operating environment temp; 92Vat 25 environment temp
MPP voltage range: (Vbat+2V)72V
Max. PV Array Power: 390W/12V; 780W/24V
Working environment temperature:-25℃～+55℃（with LCD）/-30℃～+55℃（without LCD）
Lithium battery: LiFePO4（4S;8S）/Li-NiCoMn（3S; 6S）
Self-consumption: ≤14mA(12V)；≤15mA(24V)
Temp. compensation: -3mV/℃/2V
Grounding: Common Negative
Terminals/Wire Size: 8AWG(10mm²)
Indicators: PV & battery & load working status
Buttons: View or set the parameters
LCD: PV display voltage/current /generated energy/Power Battery display voltage/current/temperature/capacity
USB interface module: Dual USB 5V 2.2A USB output for electronic equipment, NOTE: USB interface is output when the load is ON.
PC software & mobile APP (For Andriod System) can remotely monitor the controller status through this port.
NOTE: PC software & mobile APP need RS485 cable or wifi box to connect your device (optional).
Package Including
1x EPEVER TRIRON3210N Controller
1x Temputer sensor
1x Display DS2 module
1x Interface UCS module
