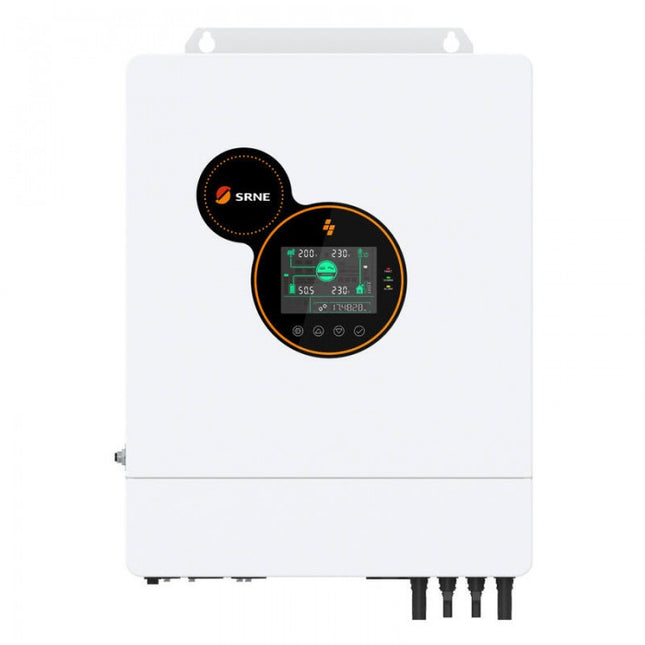

SRNE 6KW Single Phase Hybrid Solar Inverter HYP4860S100-H
***2-Year Warranty***
Key Features
Advanced MPPT technology with up to 99.9% tracking efficiency
Supports parallel operation up to 6 units (up to 36kW total system power)
Time-slot charging and discharging function to reduce electricity costs during peak and off-peak periods
Off-grid operation with optional battery-free output mode
Modern industrial-grade design with a clean, professional appearance
Supports BMS communication for lithium battery systems
Model: HYP4860S100-H
Inverter Output
Rated Output Power: 6,200 W
Maximum Output Power: 12,400 VA
Rated Output Voltage: 230 Vac (L / N / PE, Single Phase)
Motor Load Capacity: Up to 5 HP
Rated AC Frequency: 50 / 60 Hz
Waveform: Pure Sine Wave
Transfer Time: 10 ms (typical)
Battery Specifications
Supported Battery Types: Lithium-ion, Lead-acid, User-defined
Rated Battery Voltage: 48 V
Battery Voltage Range: 40 – 60 Vdc
Max. Solar Charging Current: 100 A
Max. Grid / Generator Charging Current: 80 A
Max. Hybrid Charging Current: 100 A
Solar Input
MPPT Trackers: 2
Max. PV Array Power: 4,500 W + 4,500 W
Max. Input Current: 18 A + 18 A
Max. Open Circuit Voltage: 550 Vdc + 550 Vdc
MPPT Voltage Range: 120 – 480 Vdc
Grid / Generator Input
Input Voltage Range: 90 – 280 Vac
Input Frequency Range: 50 / 60 Hz
Bypass Overload Current: 40 A
Efficiency
MPPT Tracking Efficiency: Up to 99.9%
Maximum System Efficiency: 92%
General Information
Parallel Capability: 1–6 units
(More than 3 units in parallel can form a three-phase output system)
Dimensions (W × H × D): 510 × 350 × 133 mm
Net Weight: 13 kg
SRNE MD1250N05 MD Series DC-DC Charger with MPPT Dual-Battery Controller
Smart Charging. Anytime, Anywhere.
Designed for off-grid and mobile applications such as RVs, caravans, boats, and 4WD vehicles.
Versatile Charging for Dual-Battery Systems
Supports charging from both solar panels (PV) and vehicle alternator
Charges both starter battery and leisure (auxiliary) battery simultaneously
Compatible with 12V and 24V alternator systems
For off-grid application
Can be connected to both PV and an alternator
Can charge both the leisure battery and the starter battery
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
360 degrees of security from hardware to software
All-in-One
4 charging modes，be your reliable power steward
Helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panels 2 in series/2 in parallel connection
Intelligent
Supports RV-C communication
MODEL: MD1250N05
PV INPUT
Max.Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max.PV Input Current: 45A
Max.PV Input Power: 700W
LEISURE BATTERY
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-16Vdc
Max.MPPT Charging Current: 50A
Max.Alternator Charging Current: 60A
STARTER BATTERY / ALTERNATOR
Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
Max.MPPT Charging Voltage: 13.8V
Max.MPPT Charging Current: ≤15A
Max.Alternator Input Voltage
Conventional Alternator: 13.2-16Vdc / 26.4-32Vdc
Euro 6 Standard Alternator: 12-16Vdc / 24-32Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
External Modules: Bluetooth (with APP)
GENERAL
Weight: 2.15kg
Dimension: 221x175.8x92.4mm
Protection Degree: IP32
Operating Temperature Range: -35°C - 65°C
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is engineered for off-grid solar systems, delivering high efficiency, advanced protection, and smart, user-friendly operation. Now with Bluetooth functionality for seamless mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design, saving space and reducing noise.Shiner2410B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 60VDC
MPPT Voltage Range: Battery voltage +2V to 45VDC
Max PV Input Power: 130W (12V), 260W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 10A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 155 × 99 × 41.7 mm
Weight: 350g
Ideal for off-grid solar systems, caravans, and remote applications, the Shiner Series provides stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, delivering high efficiency, advanced protection, and user-friendly operation. Now featuring Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485, CAN communication, plus Bluetooth support with mobile app.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design, saving space and reducing noise.Shiner2420B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 60VDC
MPPT Voltage Range: Battery voltage +2V to 45VDC
Max PV Input Power: 260W (12V) / 520W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 20A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 181 × 118 × 61.7 mm
Weight: 650g
Perfect for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485, CAN communication, and Bluetooth support with mobile app for real-time monitoring.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2430B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 400W (12V) / 800W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 30A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 187 × 133 × 72 mm
Weight: 1.2 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.

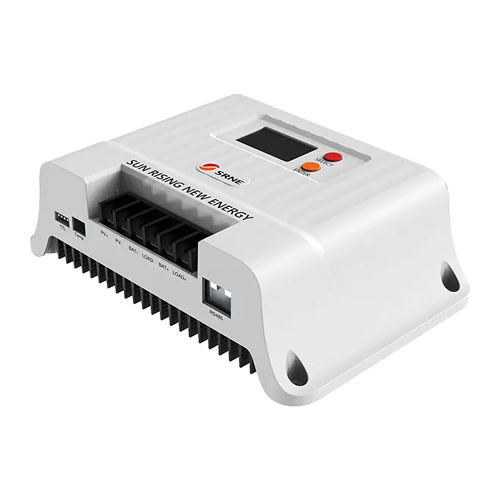

Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now featuring Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and configuration.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2460B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 800W (12V) / 1600W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 60A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 261 × 186 × 82 mm
Weight: 2.4 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
SRNE MC4860N15 MPPT Controller 60A MPPT Solar Charge Controller 12V 24V 36V 48VThe controller adopts the industry-leading PowerCatcher maximum power point tracking (MPPT) technology, enabling maximum energy harvesting from solar panels. It can quickly and accurately track the maximum power point of the solar cells under any environmental conditions, capture the maximum available energy from the solar panels in real time, and significantly improve the energy utilization efficiency of the solar system.FeaturesHigh Efficiency: with 99.9% tracking efficiency and 98% conversion efficiency, 30% higher performance than PWM controllers.Full-range circuit protection
Smart Temperature Control: Built-in temperature detection, fanless cooling, and automatic temperature compensation.
Versatile Connectivity: Supports Modbus protocol and built-in Bluetooth module.
Wide Compatibility: Compatible with lead-acid and lithium batteries, customizable charging parameters.
Recognition 12V/24V voltage automatically.Intelligent Operation: Limited charge mode to prevent overcurrent.Supports 1-year historical data storage.SpecificationsModel: MC4860N15PV inputMaximum input voltage of solar energy(25℃): 150V
Voltage at Maximum Power Point: Battery voltage+2~120V
Charging current: 60A
Solar panel power(12V battery): 800W
Solar panel power(24V battery): 1600W
Solar panel power(48V battery): 3200W
Operating temperature range: -35℃~60℃
Humidity: 95%, no condensation
Protection grade: IP32
Weight: 3.6kg
Product Dimensions: 266 × 194 × 119 mm
Boasts high-efficiency solar tracking and outstanding conversion performance, integrated with full-range circuit protection, smart temperature control, multi-mode connectivity, wide battery compatibility and intelligent operation – your top choice for solar charging management.

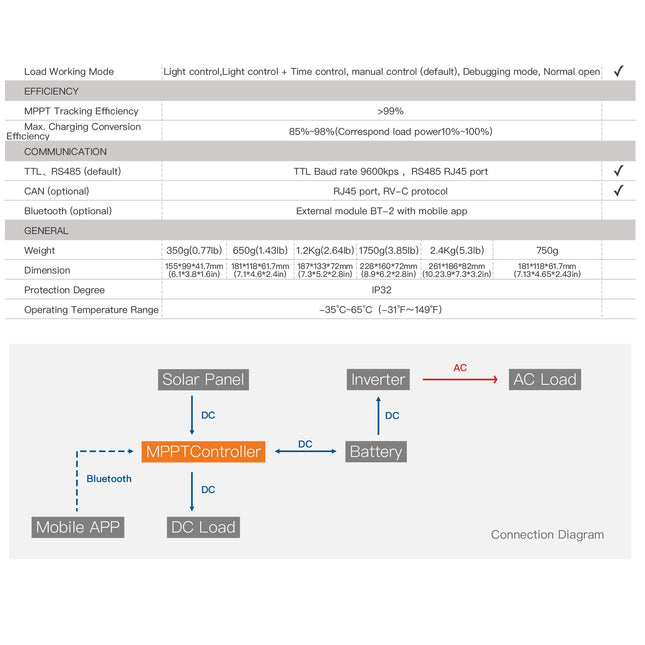

Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, providing high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and control.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2440B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 520W (12V) / 1040W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 40A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 228 × 160 × 72 mm
Weight: 1.75 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
RM-6 Remote Meter LCD Display for SRNE MC Series MPPT Solar ControllersReal-Time Monitoring of System Data and Operating StatusThe RM-6 Remote Meter is a convenient external display designed for SRNE MC Series MPPT solar charge controllers. It allows users to remotely monitor key system information in real time, providing clear visibility of the solar system’s operating status without needing to access the controller directly.Equipped with a clear LCD screen, the RM-6 displays essential system data such as battery status, charging current, voltage, and system faults. This makes it easier to manage and maintain your solar power system efficiently.The remote meter connects directly to compatible SRNE controllers, enabling easy installation and reliable communication. It is ideal for off-grid solar systems, RVs, boats, cabins, and home solar setups where the charge controller may be installed in a less accessible location.Key FeaturesCompatible with SRNE MC Series MPPT solar charge controllersReal-time monitoring of system data and operating statusClear LCD display for easy readingDisplays important information including battery voltage, charging current, and system statusRemote monitoring capability for convenient system managementSimple plug-and-play installationSpecifications
Model: RM-6
Display Type: LCD Screen
Compatible Controllers: SRNE MC Series MPPT Solar Controllers
Origin: China
Package Includes1 × RM-6 Remote Meter LCD Display

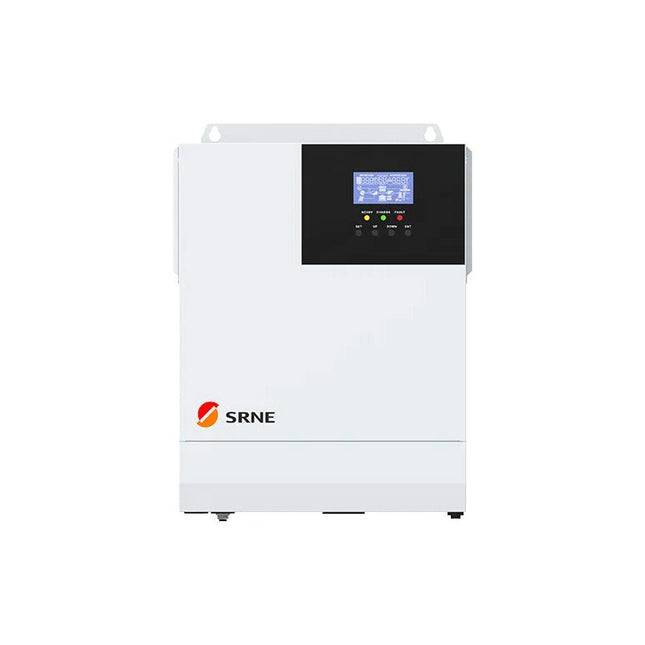

The SRNE HF2430S80-H is a high-efficiency solar charge inverter designed for off-grid and backup power systems. It combines pure sine wave AC output, MPPT solar charging, and battery management in one compact unit. With smart monitoring, multiple battery support, and hybrid charging, it ensures reliable and stable power for homes, businesses, and RVs.
Key Features
Reliable Power Output
3,300W rated power, 6,000VA peak power
Supports motor loads up to 2HP
High-Efficiency Solar Charging
4,000W max. PV input, 99.9% MPPT efficiency
Flexible Battery Compatibility
Works with Li-ion, Lead-Acid, and custom batteries
Hybrid Power Support
Supports mains and generator input (90-280V AC)
10ms switching time for uninterrupted power
Safe & Durable
2-year warranty
Specifications
Inverter Output
Rated Power: 3,300W
Peak Power: 6,000VA
Output Voltage: 230V AC (L/N/PE)
Waveform: Pure Sine Wave
Motor Load Capacity: 2HP
Frequency: 50Hz/60Hz
Switching Time: 10ms
Battery
Type: Li-ion / Lead-Acid / User-Defined
Voltage: 24VDC
Voltage Range: 20-33VDC
Max. Charging Current: 80A
PV Input
MPPT Trackers: 1
Max. PV Power: 4,000W
Max. PV Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
Mains/Generator Input
AC Input Voltage: 90-280V AC
Frequency: 50Hz/60Hz
Bypass Overload Current: 30A
Efficiency
MPPT Efficiency: 99.9%
Battery Inverter Efficiency: 92%
General
Size: 378×280×103mm
Weight: 6.9kg
Protection: IP20 (Indoor Use)
Operating Temperature: -10°C to 55°C
Cooling: Internal Fan
Noise Level:
The SRNE HF4850S80-H is a high-efficiency solar charge inverter designed for off-grid and backup power systems. It combines pure sine wave AC output, MPPT solar charging, and battery management in one compact unit. With smart monitoring, multiple battery support, and hybrid charging, it ensures reliable and stable power for homes, businesses, and RVs.
Key Features
Reliable Power Output
5,000W rated power, 10,000VA peak power
Supports motor loads up to 4HP
High-Efficiency Solar Charging
5,200W max. PV input, 99.9% MPPT efficiency
Flexible Battery Compatibility
Works with Li-ion, Lead-Acid, and custom batteries
Hybrid Power Support
Supports mains and generator input (90-280V AC)
10ms switching time for uninterrupted power
Safe & Durable
2-year warranty
Specifications
Inverter Output
Rated Power: 5,000W
Peak Power: 10,000VA
Output Voltage: 230V AC (L/N/PE)
Waveform: Pure Sine Wave
Motor Load Capacity: 4HP
Frequency: 50Hz/60Hz
Switching Time: 10ms
Battery
Type: Li-ion / Lead-Acid / User-Defined
Voltage: 48VDC
Voltage Range: 40-60VDC
Max. Charging Current: 80A
PV Input
MPPT Trackers: 1
Max. PV Power: 5,200W
Max. PV Open Circuit Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
Mains/Generator Input
AC Input Voltage: 90-280V AC
Frequency: 50Hz/60Hz
Bypass Overload Current: 40A
Efficiency
MPPT Efficiency: 99.9%
Battery Inverter Efficiency: 92%
General
Size: 426×322×126mm
Weight: 10.9kg
Protection: IP20 (Indoor Use)
Operating Temperature: -15°C to 55°C
Cooling: Internal Fan
Noise Level:

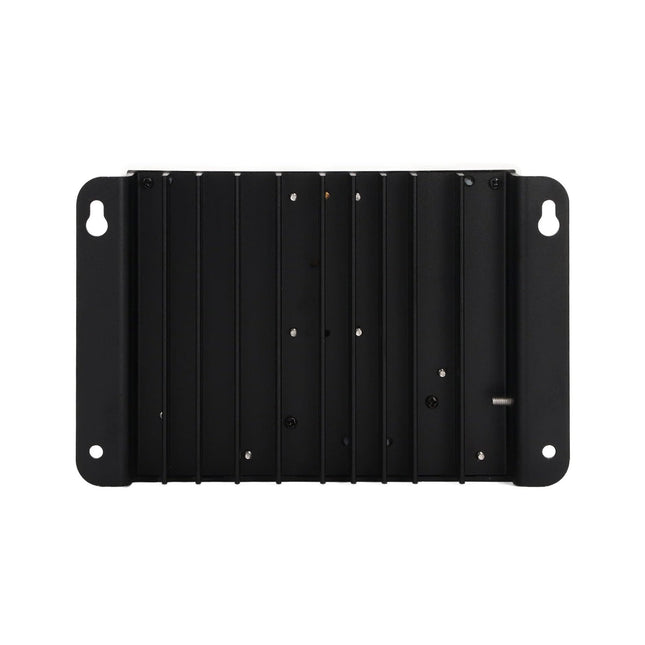

The SRNE MC2420N10 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. It ensures maximum solar energy utilization, stable battery charging, and intelligent system monitoring. With compact design, multiple battery compatibility, and Bluetooth support, it provides a reliable and user-friendly solar power solution.
High-Efficiency MPPT Charging – 99.9% tracking efficiency, 98% conversion efficiency
Wide Battery Compatibility – Supports FLD, GEL, LI, SLD, and user-defined batteries
Smart Monitoring – TTL, RS485, CAN (RV-C), Bluetooth with mobile app support
Safe & Reliable – Full charge/discharge protection, IP32 indoor design
Quiet & Compact – Natural cooling, lightweight, and easy installation
Specifications
PV Input
Max. Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72V
Max. PV Input Power: 260W (12V) / 520W (24V)
Battery
Battery Type: FLD / GEL / LI / SLD / User Defined
Rated Battery Voltage: 12V / 24VDC
Battery Voltage Range: 9-32VDC
Max. Charging Current: 20A
Charging Mode: MPPT Buck
Efficiency
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: ≤98%
General
Protection Degree: IP32
Operating Temperature: -35°C to 60°C
Cooling Method: Natural Cooling
Weight: 0.65kg
Dimensions: 150×105.6×61.5mm
Communication & Monitoring
Built-in: TTL / RS485 / CAN (RV-C)
Optional Accessories: RM-6/RM-7 display screens, BT-2 Bluetooth module, GP-2 IoT module
The SRNE MC2430N10 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. It ensures maximum solar energy utilization, stable battery charging, and intelligent system monitoring. With compact design, multiple battery compatibility, and Bluetooth support, it provides a reliable and user-friendly solar power solution.
High-Efficiency MPPT Charging – 99.9% tracking efficiency, 98% conversion efficiency
Wide Battery Compatibility – Supports FLD, GEL, LI, SLD, and user-defined batteries
Smart Monitoring – TTL, RS485, CAN (RV-C), Bluetooth with mobile app support
Safe & Reliable – Full charge/discharge protection, IP32 indoor design
Quiet & Compact – Natural cooling, lightweight, and easy installation
Specifications
PV Input
Max. Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72V
Max. PV Input Power: 400W (12V) / 800W (24V)
Battery
Battery Type: FLD / GEL / LI / SLD / User Defined
Rated Battery Voltage: 12V / 24VDC
Battery Voltage Range: 9-32VDC
Max. Charging Current: 30A
Charging Mode: MPPT Buck
Efficiency
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: ≤98%
General
Protection Degree: IP32
Operating Temperature: -35°C to 60°C
Cooling Method: Natural Cooling
Weight: 0.83kg
Dimensions: 150×105.6×67.5mm
Communication & Monitoring
Built-in: TTL / RS485 / CAN (RV-C)
Optional Accessories: RM-6/RM-7 display screens, BT-2 Bluetooth module, GP-2 IoT module

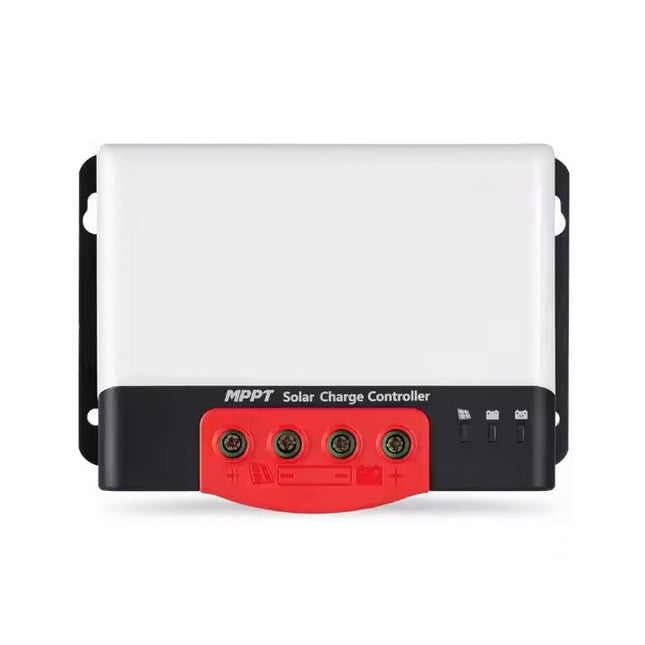

The SRNE MC2440N10 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. It ensures maximum solar energy utilization, stable battery charging, and intelligent system monitoring. With compact design, multiple battery compatibility, and Bluetooth support, it provides a reliable and user-friendly solar power solution.
High-Efficiency MPPT Charging – 99.9% tracking efficiency, 98% conversion efficiency
Wide Battery Compatibility – Supports FLD, GEL, LI, SLD, and user-defined batteries
Smart Monitoring – TTL, RS485, CAN (RV-C), Bluetooth with mobile app support
Safe & Reliable – Full charge/discharge protection, IP32 indoor design
Quiet & Compact – Natural cooling, lightweight, and easy installation
Specifications
PV Input
Max. Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72V
Max. PV Input Power: 550W (12V) / 1100W (24V)
Battery
Battery Type: FLD / GEL / LI / SLD / User Defined
Rated Battery Voltage: 12V / 24VDC
Battery Voltage Range: 9-32VDC
Max. Charging Current: 40A
Charging Mode: MPPT Buck
Efficiency
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: ≤98%
General
Protection Degree: IP32
Operating Temperature: -35°C to 60°C
Cooling Method: Natural Cooling
Weight: 1.04kg
Dimensions: 183×127×65.5mm
Communication & Monitoring
Built-in: TTL / RS485 / CAN (RV-C)
Optional Accessories: RM-6/RM-7 display screens, BT-2 Bluetooth module, GP-2 IoT module
