Description
Authorised Gokin Solar Distributor in New Zealand
15-Year Product Warranty
30-Year Linear Power Warranty
Exceptional Module Efficiency – 23.5%

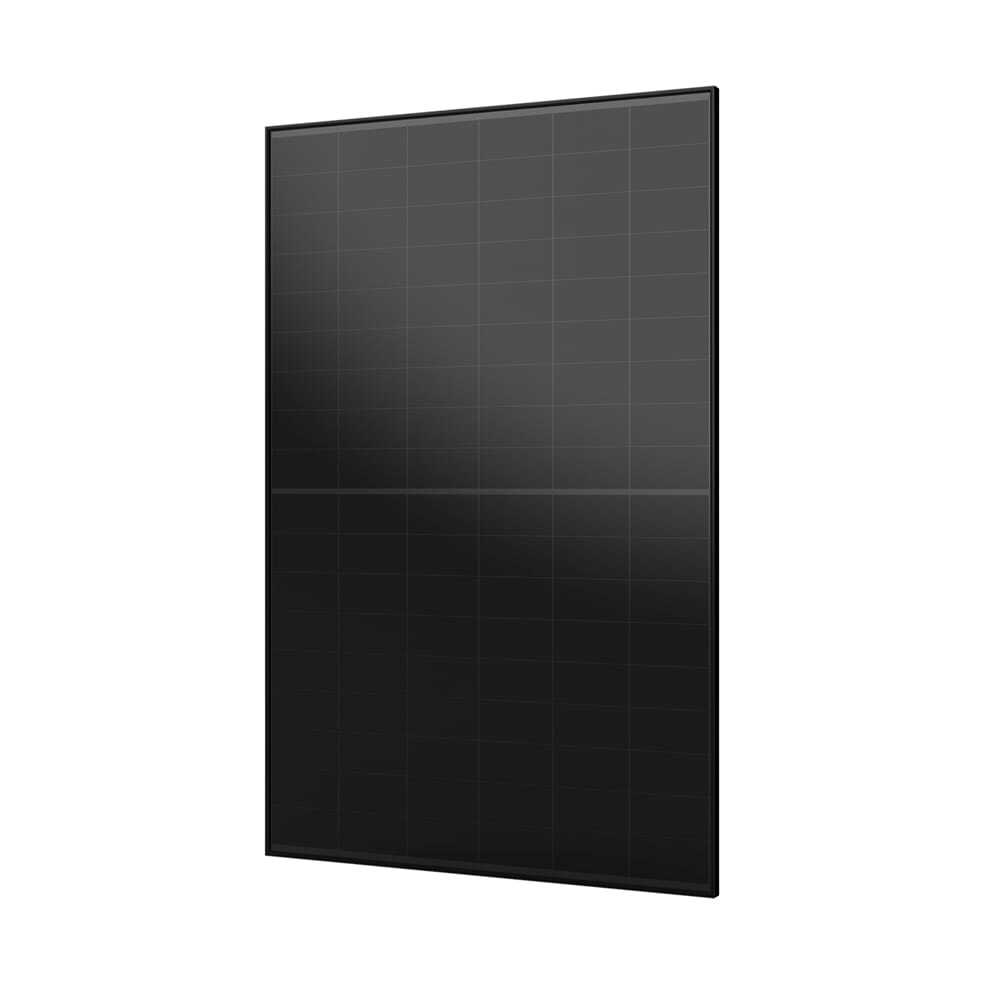

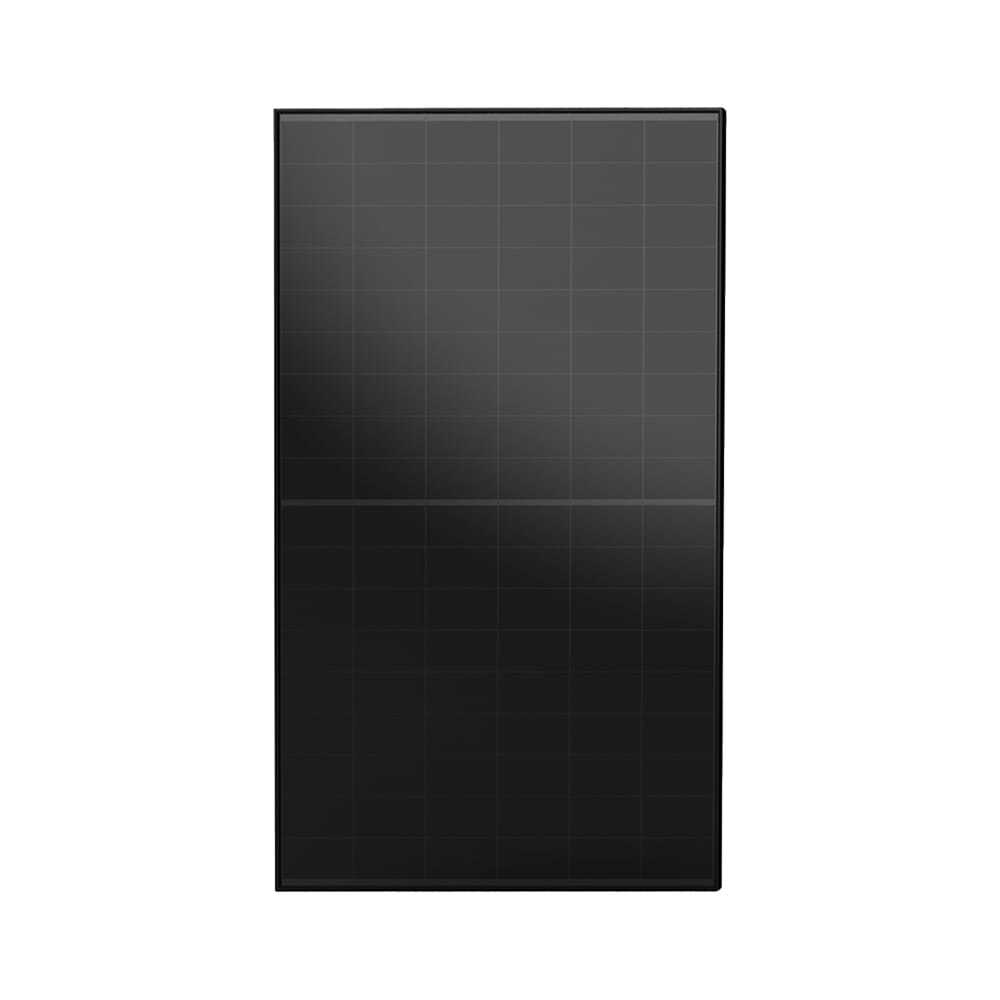

Gokin Solar GBC All Black Series – 480W Bifacial Dual-Glass Solar Panel
The GK-3-54HGDb-480M combines advanced GBC back-contact cell technology with a premium all-black design. Delivering 480W output and 23.5% efficiency, it generates more power from limited roof space while providing a clean appearance without visible front busbars.
Its bifacial dual-glass construction can utilise reflected light from the rear for additional energy generation. Partial-shading optimisation, strong low-light performance and a low power temperature coefficient help maintain reliable output under changing conditions.
The durable 2.0mm + 2.0mm dual-glass structure offers excellent resistance to micro-cracks, high temperatures and severe weather.
Highlights:
480W output | 23.5% efficiency
GBC back-contact cell technology
Bifacial, all-black dual-glass design
Partial-shading optimisation
Power temperature coefficient: -0.26%/°C
Front/rear static load: 5400Pa / 2400Pa
15-year product warranty | 30-year linear power warranty

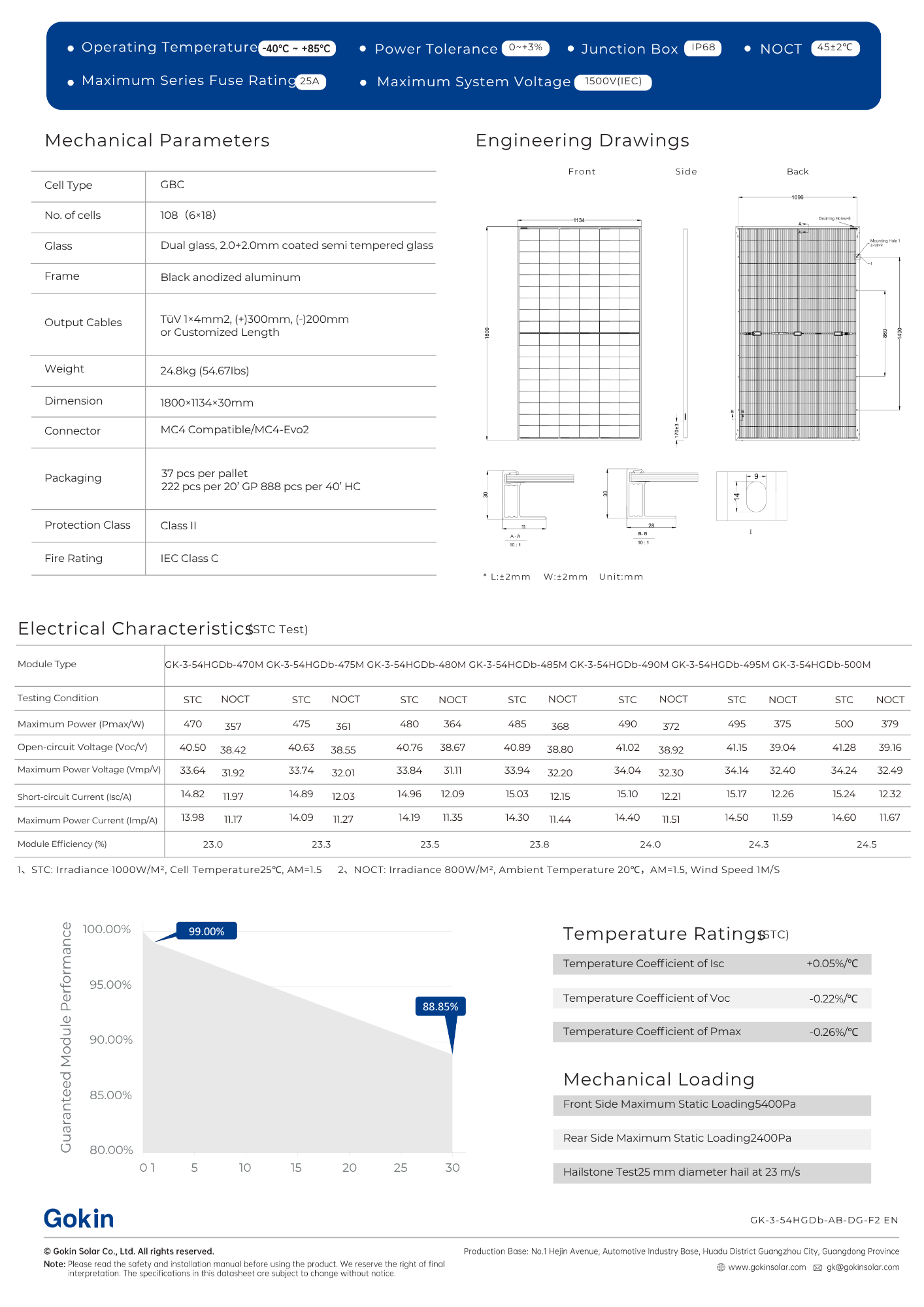

Model: GK-3-54HGDb-480M
Testing Condition: STC
Maximum Power (Pmax/W): 480
Open Circuit Voltage (Voc/V): 40.76
Short Circuit Current (Isc/A): 14.96
Voltage at Maximum Power (Vmp/V): 33.84
Current at Maximum Power (Imp/A): 14.19
Module Efficiency: 23.5%
Mechanical Parameters
Cell Type: GBC
Cell Orientation: 108 cells (6 × 18)
Junction Box: IP68
Output Cable: TÜV 1 × 4mm², (+)300mm and (-)200mm
Glass: Dual glass, 2.0mm + 2.0mm coated semi-tempered glass
Frame: Black anodised aluminium
Connector: MC4 compatible / MC4-Evo2
Weight: 24.8kg
Dimensions: 1800 × 1134 × 30mm
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 25A
Fire Rating: IEC Class C
Ideal for premium residential rooftops and space-limited installations requiring high energy yield and refined aesthetics.
